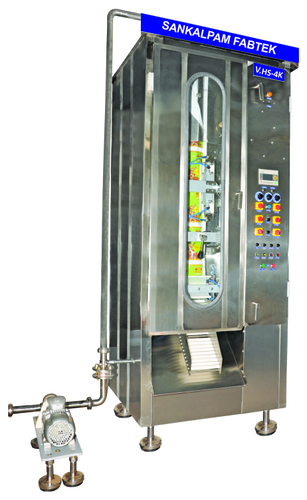

Automatic Pouch Form Seal Machines

Name: Automatic Pouch Form Seal Machines
Brand: SANKALPAM FABTEK
Price: 150000 INR
Availability: InStock

Price 150000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Pouch Form Seal Machines with High Speed With Servo Control

Salient Features

Mechanical cam driven operations.
Design by electro-pneumatic filling device for no product wastage during start-up.
Simple and user friendly operations.
Thyistoriesd impulse sealing system.
Lowest matching height in available models with easy access to machine filling systems
Optional facility for independent head/track operation with simultaneous packing of different quantities.
Sturdy and robust construction
Optional mechanical dosing system can be offered
Either PLC controlling or modular PCB controlling system can be provided depends upon customers requirements.

Optional accessories

Technical Specifications

Electricity	3 phase with regulated Voltage and neutral
Power consumption	3 KW/ Hour/ Head
Cooling Water	150 to 200 Lts / Hour
Accuracy	+/- 0.5% of the quantity packed
Accuracy in length	+/- 2mm for all width
Speed of the machine	30 to 40 Packs/minute/ head for 5 layer film
for side sealing	25 to 35 packs/minute/ head for 3 layer film
Speed of the machine	25 to 35 packs/ minute/ head for 5 layer film
for centre seal	20 to 30 packs/minute/ head for 3 layer film
Quantity Range	50ml/gm to 1000ml/gm
Packing Material	LD / Bonding/Nylon Bonding/ Prime core
Film thickness	70 to 110 microns
Film width	324+/-2mm
Film roll weight	up to 40 kgs
Type of seal	Vertical overlap / Impulse heat seal
Material of construction	S.S. / M.S / Aluminum
Injection system	Volumetric filling with mechanical system/by dosing pump control with inverter (VFD)
Horizontal seal	Impulse heat System
Vertical seal	Impulse heat System
Photo sensor	Including with PLC
Pouch counter / Alarm	Including with PLC
